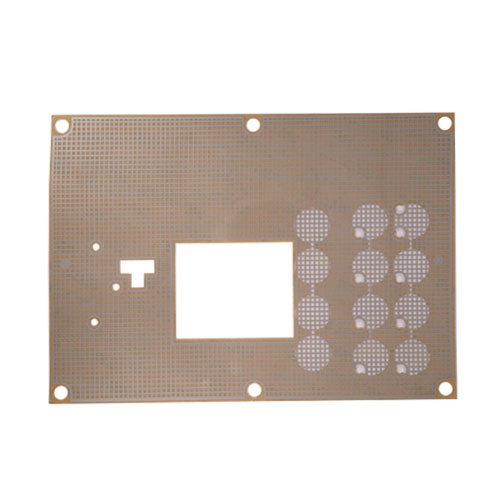

Capacitive touch flexible circuit

Material：PET/Black PET

Thickness：0.125 mm--0.188mm

Structure ：

Upper switch+spacer+Lower switch+Rear adhesive

Description：

Touch flat flexible switch

Flexible switch with keys embossed

Flexible switch with metal domes

Capacitive touch flexible switch

A capacitive touch flexible circuit, also known as a flexible touch sensor, is a technology that combines the advantages of capacitive touch technology with the flexibility of a flexible circuit. It is used in a variety of applications, including consumer electronics, automotive, healthcare, and industrial applications.

Capacitive touch technology utilizes the electrical properties of the human body to detect touch input. When a person touches a capacitive touch screen or sensor, it changes the electrical charge at that location, which is detected by the touch controller. This technology is widely used in smartphones, tablets, and other touch-enabled devices.

A flexible circuit, on the other hand, is a thin, lightweight circuit board that can be bent or curved to fit into different shapes and form factors. It consists of multiple layers of conductive material, including copper traces and insulating layers, which are connected by flexible, polyimide or polyester film substrates. Flexible circuits offer several advantages over traditional rigid PCBs, including reduced weight, improved reliability, and the ability to design smaller and more complex devices.

Combining capacitive touch technology with a flexible circuit allows for the creation of touch sensors that can conform to curved or irregular surfaces. This opens up new possibilities for touch-enabled devices, such as wearable electronics, flexible displays, and curved control panels. For example, a flexible touch sensor could be used in a smartwatch to provide a touch interface on a curved surface, or in a car dashboard to control various functions.

The construction of a Capacitive touch flexible circuit involves several key components. The conductive traces are made of a conductive material, such as copper or silver, and are designed in a pattern that forms the touch-sensitive area. These traces are then covered with a dielectric material, such as a thin layer of polymer, which acts as an insulator. On top of the dielectric layer, a transparent conductive material, such as indium tin oxide (ITO), is applied to create the touch surface.

In operation, the touch controller applies a voltage to the conductive traces, which creates an electric field across the touch surface. When a user touches the surface, the electrical charge at that point changes, modulating the electric field. This change in the electric field is detected by the touch controller, which translates it into a touch input.

The flexibility of the circuit allows for unique designs and form factors that were not possible with rigid touch sensors. It also offers advantages in terms of durability and reliability. Since the flexible circuit can withstand bending and flexing, it is less prone to damage from accidental drops or impacts. This makes it ideal for applications where the touch sensor may be subjected to rough handling or frequent bending, such as in wearable devices.

In summary, a capacitive touch flexible circuit combines the benefits of capacitive touch technology with the flexibility of a flexible circuit. It enables the creation of touch sensors that can be shaped to fit curved surfaces, opening up new possibilities for touch-enabled devices. With its durability and reliability, this technology has the potential to revolutionize the way we interact with electronics.
